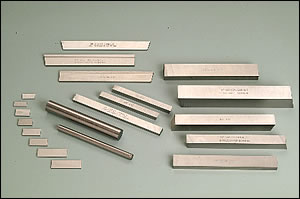

TOOL BITS :


HIGH SPEED STEEL TOOL BITS are manufactured from the finest quality Cobalt, Molybdenum & Tungsten bearing grades of High Speed Steel. Widely used for machining and variety of ferrous and nonferrous metals. Sophisticated heat treatment provides more life between two regrinds.




SQUARE GROUND TOOL BITS
HIGH SPEED STEEL
Size (inch)
W x H x L
Size (mm)
W x H x L
Unit Size
1/8 x 1/8 x 2.1/2
3 x 3 x 63
20
3/16 x 3/16 x 2.1/2
5 x 5 x 63
10
1/4 x 1/4 x 2.1/2
6 x 6 x 63
10
5/16 x 5/16 x 2.1/2
8 x 8 x 63
10
3/8 x 3/8 x 3
10 x 10 x 75
10
7/16 x 7/16 x 3.1/2
11 x 11 x 87
10
1/2 x 1/2 x 4
12 x 12 x 100
5
5/8 x 5/8 x 4.1/2
16 x 16 x 112
5
3/4 x 3/4 x 5
19 x 19 x 125
5
7/8 x 7/8 x 6
22 x 22 x 150
5
1 x 1 x 7
25 x 25 x 175
5
1.1/8 x 1.1/8 x 7
28 x 28 x 175
5
1.1/4 x 1.1/4 x 7
32 x 32 x 175
5
EXTRA LONG
W x H x L (inch)
W x H x L (mm)
Unit Size
1/4 x 1/4 x 4
6 x 6 x 100
10
1/4 x 1/4 x 6
6 x 6 x 150
10
1/4 x 1/4 x 8
6 x 6 x 200
10
5/16 x 5/16 x 4
8 x 8 x 100
10
5/16 x 5/16 x 6
8 x 8 x 150
10
5/16 x 5/16 x 8
8 x 8 x 200
10
3/8 x 3/8 x 4
10 x 10 x 100
10
3/8 x 3/8 x 6
10 x 10 x 150
5
3/8 x 3/8 x 8
10 x 10 x 200
5
7/16 x 7/16 x 6
11 x 11 x 150
10
1/2 x 1/2 x 6
12 x 12 x 150
5
1/2 x 1/2 x 8
12 x 12 x 200
5
5/8 x 5/8 x 6
16 x 16 x 150
5
5/8 x 5/8 x 8
16 x 16 x 200
5
3/4 x 3/4 x 6
19 x 19 x 150
5
3/4 x 3/4 x 8
19 x 19 x 200
5
1 x 1 x 8
25 x 25 x 200
5



AVAILABLE

  • BP 101 GRADE M2 WITHOUT COBALT
  • BP 202 GRADE M35 WITH 5% COBALT
  • BP 303 GRADE M42 WITH 8% COBALT
  • BP 404 GRADE T42 WITH 10% COBALT
  • BP 505 GRADE T42 WITH 10% COBALT AND CRYOGENIC TREATMENT

RECTANGULAR GROUND TOOL BITS
Size (inch)
W x H x L
Size (mm)
W x H x L
Unit Size
1/8 x 1/2 x 4
3 x 12 x 100
10
3/16 x 51/16 x 4
5 x 8 x 100
10
1/4 x 3/8 x 2.1/2
6 x 10 x 63
10
1/4 x 3/8 x 3
6 x 10 x 75
10
1/4 x 3/8 x 4
6 x 10 x 100
10
1/4 x 3/8 x 6
6 x 10 x 150
10
1/4 x 1/2 x 3
6 x 12 x 75
10
1/4 x 1/2 x 4
6 x 12 x 100
10
1/4 x 1/2 x 6
6 x 12 x 200
10
1/4 x 3/4 x 4
6 x 19 x 100
5
1/4 x 3/4 x 5
6 x 19 x 125
5
1/4 x 3/4 x 6
6 x 19 x 150
5
1/4 x 1 x 6
6 x 25 x 150
5
5/16 x 3/8 x 4
8 x 10 x 100
10
5/16 x 7/16 x 3
8 x 11 x 75
10
5/16 x 7/16 x 4
8 x 11 x 100
10
5/16 x 1/2 x 4
8 x 12 x 100
10
5/16 x 1/2 x 6
8 x 12 x 150
10
5/16 x 3/4 x 4
8 x 19 x 100
5
5/16 x 3/4 x 5
8 x 19 x 125
5
5/16 x 1 x 6
8 x 25 x 150
5
3/8 x 1/2 x 3
10 x 12 x 75
10
3/8 x 1/2 x 4
10 x 12 x 100
10
3/8 x 5/8 x 4
10 x 16 x 100
5
3/8 x 5/8 x 5
10 x 16 x 125
5
3/8 x 5/8 x 6
10 x 16 x 150
5
3/8 x 3/4 x 4
10 x 19 x 100
5
3/8 x 3/4 x 5
10 x 19 x 125
5
3/8 x 3/4 x 6
10 x 19 x 150
5
3/8 x 1 x 6
10 x 25 x 150
5
1/2 x 3/4 x 4
12 x 19 x 100
5
1/2 x 3/4 x 5
12 x 19 x 125
5
1/2 x 3/4 x 6
12 x 19 x 150
5
1/2 x 1 x 6
12 x 25 x 150
5
1/2 x 1 x 7
12 x 25 x 175
5
1/2 x 1 x 8
12 x 25 x 200
5
1/2 x 1.1/4 x 7
12 x 32 x 175
5
1/2 x 1.1/2 x 7
12 x 38 x 175
5
5/8 x 3/4 x 5
16 x 19 x 125
5
5/8 x 7/8 x 6
16 x 22 x 150
5
5/8 x 1 x 6
16 x 25 x 150
5
5/8 x 1 x 7
16 x 25 x 175
5
5/8 x 1.1/4 x 6
16 x 32 x 150
5
5/8 x 1.1/4 x 7
16 x 32 x 175
5
5/8 x 1.1/2 x 7
16 x 38 x 175
5
3/4 x 1 x 6
19 x 25 x 150
5
3/4 x 1 x 7
19 x 25 x 175
5
3/4 x 1.1/8 x 7
19 x 28 x 175
5
3/4 x 1.1/4 x 6
19 x 32 x 150
5
3/4 x 1.1/4 x 7
19 x 32 x 175
5
3/4 x 1.1/2 x 7
19 x 38 x 175
5
1 x 1.1/4 x 6
25 x 32 x 150
5
1 x 1.1/4 x 7
25 x 32 x 175
5
1 x 1.1/2 x 7
25 x 38 x 175
5


AVAILABLE

  • BP 101 GRADE M2 WITHOUT COBALT
  • BP 202 GRADE M35 WITH 5% COBALT
  • BP 303 GRADE M42 WITH 8% COBALT



CUT – OFF BLADES
Size (inch)
W x H x L
Size (mm)
W x H x L
Unit Size
1/16 x 1/2 x 4.1/2
1.5 x 12 x 112
20
1/16 x 11/16 x 5
1.5 x 17 x 125
20
3/32 x 1/2 x 4.1/2
>
2.5 x 12 x 112
10
3/32 x 5/8 x 5
2.5 x 16 x 125
10
1/8 x 1/2 x 4.1/2
3 x 12 x 112
10
1/8 x 3/4 x 5
3 x 19 x 125
10
1/8 x 3/4 x 6
3 x 19 x 150
10
1/8 x 7/8 x 6
3 x 22 x 150
10
1/8 x 7/8 x 7
3 x 22 x 175
10
3/16 x 3/4 x 6
5 x 19 x 150
5
3/16 x 13/16 x 6
5 x 21 x 150
5
3/16 x 1 x 6.1/2
5 x 25 x 165
10
3/16 x 1 x 8
5 x 25 x 200
>
10
3/16 x 1.1/8 x 7
5 x 28 x 175
10
1/4 x 1.1/8 x 7
6 x 28 x 175
10
1/4 x 1.1/4 x 7
6 x 32 x 175
10
1/4 x 1.1/4 x 9
6 x 32 x 225
10


AVAILABLE

  • BP 101 GRADE M2 WITHOUT COBALT
  • BP 202 GRADE M35 WITH 5% COBALT


CUT – OFF BLADES P TYPE (T SHAPED)
HIGH SPEED STEEL

CODE NO
Size (inch)
W x H x L
Size (mm)
W x H x L
Unit Size
P1N
0.04 x 1/2 x 3.1/2
0.040 x 12 x 87
20
P1
1/16 x 1/2 x 4.1/2
1.5 x 12 x 112
20
P2N
5/64 x 1/2 x 4.1/2
1.75 x 12 x 112
10
P2
3/32 x 1/2 x 4.1/2
2.5 x 12 x 112
10
P3S
1/8 x 1/2 x 4.1/2
3 x 12 x 112
10
P3N
3/32 x 11/16 x 5
2.5 x 17 x 125
10
P3
1/8 x 11/16 x 5
3 x 17 x 125
10
P4
5/32 x 11/16 x 5
4 x 17 x 125
10
P5S
3/16 x 11/16 x 5
5 x 17 x 125
10
P3W
1/8 x 3/4 x 5
3 x 19 x 125
10
P4W
5/32 x 3/4 5
4 x 19 x 125
10
P5W
3/16 x 3/4 x 5
5 x 19 x 125
10
P5X
1/8 x 7/8 x 6
3 x 22 x 150
10
P5N
5/32 x 7/8 x 6
4 x 22 x 150
10
P5
3/16 x 7/8 x 6
5 x 22 x 150
10
P6
1/4 x 7/8 x 6
6 x 22 x 150
10
PSX
1/8 x 1.1/8 x 6.1/2
3 x 28 x 165
10
PSN
5/32 x 1.1/8 x 6.1/2
4 x 28 x 165
10
P8
3/16 x 1.1/8 x 6.1/2
5 x 28 x 165
10
P9
1/4 x 1.1/8 x 6.1/2
6 x 28 x 165
10
P10
5/16 x 1.1/8 x 6.1/2
8 x 28 x 165
10


AVAILABLE

  • BP 101 GRADE M2 WITHOUT COBALT
  • BP 202 GRADE M35 WITH 5% COBALT

ROUND TOOL BITS
HIGH SPEED STEEL
Size(inch)
DIA x LENGTH
Size(mm)
DIA x LENGTH
Unit Size
1/8 x 2.3/4
3 x 70
20
3/16 x 3.1/2
5 x 87
10
1/4 x 2.1/2
6 x 63
10
5/16 x 2.1/2
8 x 63
10
5/16 x 3.1/2
8 x 87
10
3/8 x 3
10 x 75
10
7/16 x 3.1/2
11 x 87
10
7/16 x 4
11 x 100
10
1/2 x 4
12 x 100
5
5/8 x 3
16 x 75
5
EXTRA LONG
1/4 x 4
6 x 100
10
5/16 x 4.1/2
8 x 112
10
3/8 x 4
10 x 100
10
3/8 x 5
10 x 125
5
7/16 x 5.1/2
11 x 140
5
1/2 x 6
12 x 150
5
3/16 x 6
6 x 150
10
5/8 x 6
16 x 150
5
3/4 x 6
19 x 150
5
7/8 x 6
22 x 150
5
7/8 x 8
22 x 200
5
1 x 6
25 x 150
5
1 x 8
25 x 200
5
