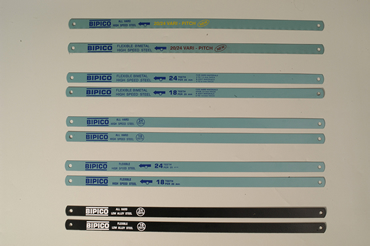

HAND HACKSAW BLADES:

HSS ALL HARD
BIMETAL HSS
LAS ALL HARD
VARI PITCH


ALL HARD HIGH SPEED STEEL

These blades are ideal to use when the work is held securely and the blade is not subjected to bending and twisting stresses. They hold the edge when cutting hard-to-machine alloys, maintaining straightness of the cut. The blades are uniformly hardened throughout.

SIZE IN M.M.
(L x W x T)
SIZE IN INCHES
(L x W x T)
TEETH
PER INCH
UNIT OF PACK
DOMESTIC
EXPORT
250 x 12.5 x 0.63
10 x 1/2 x 0.025
14,18, 24, 32
100
100
300 x 12.5 x 0.63
12 x 1/2 x 0.025
14,18, 24, 32
100
100
300 x 16 x 0.80
12 x 5/8 x 0.032
14,18, 24
25
50

BIMETAL FLEXIBLE HIGH SPEED STEEL


These blades have hardened, high speed steel teeth with a tough, shock-absorbing back. They are shatter-resistant and excellent for interrupted cuts and sawing in cramped places where the blade is subject to bending and twisting stresses.

SIZE IN .M.
(L x W x T)
SIZE IN INCHES
(L x W x T)
TEETH
PER INCH
UNIT OF PACK
DOMESTIC
EXPORT
250 x 12.5 x 0.63
10 x 1/2 x 0.025
14,18, 24, 32
100
100
300 x 12.5 x 0.63
12 x 1/2 x 0.025
14,18, 24, 32
100
100
300 x 16 x 0.80
12 x 5/8 x 0.032
14,18, 24
25
50

LOW ALLOY STEEL ALL HARD HAND HACKSAW BLADES & JUNIOR SAW BLADES These carbon steel, all-purpose blades are for cutting mild steel, copper, brass, aluminum and similar materials.

SIZE IN .M.
(L x W x T)
SIZE IN INCHES
(L x W x T)
TEETH  PER INCH
UNIT OF PACK
DOMESTIC
EXPORT
150 x 6 x 0.4 junior saw
6 x 1/4 x 0.017
32
100
100
250 x 12.5 x 0.63
10 x 1/2 x 0.025
14,18, 24, 32
100
100
300 x 12.5 x 0.63
12 x 1/2 x 0.025
14,18, 24, 32
100
100

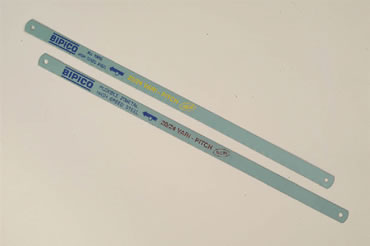

VARI – TOOTH

THE NEW 20/24 VARI TOOTH Hacksaw Blade
HAVE TWO BLADES IN ONE!


BENEFITS

  • 20 % Longer life, Faster Cutting
  • Reduces inventory of different TPI Blade
  • No Lost time for changing different TPI Blade
  • Less Cost per cut
  • Used in a variety of applications

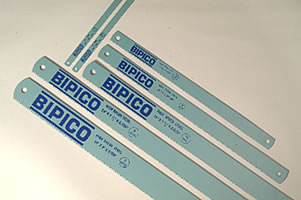

POWER HACKSAW BLADES

ALL HARD HIGH SPEED STEEL

High Speed Power hacksaw blades of high speed steel satisfy the highest requirements for power sawing bars, tubes, sections, etc. High Speed blades are specially hardened and precision set. Blades suitable for Kasto Machine can also be produced

SIZE IN .M.
(L x W x T )
SIZE IN INCHES
(L x W x T)
TEETH  PER INCH
UNIT OF PACK
DOMESTIC
EXPORT
350 x 25 x 1.25
12 x 1 x 0.050
10,14
10
20
350 x 25 x 1.25
14 x 1 x 0.050
10,14
10
20
400 x 25 x 1.25
16 x 1 x 0.050
10,14
10
20
425 x 25 x 1.25
17 x 1 x 0.050
10,14
10
20
450 x 25 x 1.25
18 x 1 x 0.050
10,14
10
20
350 x 32 x 1.60
14 x 1.1/4 x 0.062
6,10
10
20
400 x 32 x 1.60
16 x 1.1/4 x 0.062
6,10
10
20
425 x 32 x 1.60
17 x 1.1/4 x 0.062
6,10
10
20
450 x 32 x 1.60
18 x 1.1/4 x 0.062
6,10
10
20
450 x 40 x 1.60
18 x 1.1/2 x 0.062
6,10
10
10
450 x 40 x 2.00
18 x 1.1/2 x 0.075
4,6,10
10
10
450 x 45 x 2.25
18 x 1.3/4 x 0.088
4,6,10
10
10
500 x 32 x 2.00
20 x 1.1/4 x 0.075
4,6
10
10
500 x 40 x 2.00
20 x 1.1/2 x 0.075
4,6,10
10
10
525 x 40 x 2.00
21 x 1.1/2 x 0.075
4,6,10
10
10
525 x 45 x 2.25
21 x 1.3/4 x 0.088
4,6
10
10
550 x 40 x 2.00
22 x 1.1/2 x 0.075
4,6,10
10
10
600 x 40 x 2.00
24 x 1.1/2 x 0.075
4,6,10
10
10
600 x 45 x 2.25
24 x 1.3/4 x 0.088
4,6,10
10
10
600 x 50 x 2.00
24 x 2 x 0.075
4,6,10
10
10
600 x 40 x 2.50
24 x 1.1/2 x 0.100
4,6
10
10
600 x 50 x 2.50
24 x 2 x 0.100
4,6
10
10
700 x 40 x 2.50
28 x 1.1/2 x 0.100
4,6
10
10
700 x 50 x 2.50
28 x 2 x 0.100
4,6
10
10
750 x 40 x 2.50
30 x 1.1/2 x 0.100
4,6
10
10
750 x 50 x 2.50
30 x 2 x 0.100
4,6
10
10
800 x 50 x 2.50
32 x 2 x 0.100
4,6
10
10
900 x 50 x 2.50
36 x 2 x 0.100
4,6
10
10

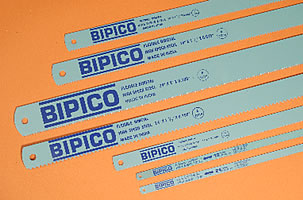

BIMETAL HIGH SPEED STEEL


Combining two materials, tooth line with high alloy high speed steel and body of tough tool steel the blade results in maximum wearing strength and cutting capability, making it far superior to ordinary high-speed steel blades. Blades suitable for Kasto Machines can also be produced.

SIZE IN .M.
(L x W x T)
SIZE IN INCHES
(L x W x T)
TEETH  PER INCH
UNIT OF PACK
DOMESTIC
EXPORT
300 x 25 x 1.25
12 x 1 x 0.050
10,14
10
20
350 x 25 x 1.25
14 x 1 x 0.050
6,10,14
10
20
350 x 32 x 1.60
14 x 1.1/4 x 0.062
4,6,10
10
20
350 x 32 x 2.00
14 x 1.1/4 x 0.075
4,6,10
10
20
400 x 32 x 1,60
16 x 1.1/4 x 0.062
4,6,10,14
10
20
400 x 38 x 2.00
16 x 1.1/2 x 0.075
4,6,10
10
10
425 x 32 x 1.60
17 x 1.1/4 x 0.062
10
10
20
450 x 32 x 1.60
18 x 1.1/4 x 0.062
4,6,10,14
10
20
450 x 38 x 2.00
18 x 1.1/2 x 0.075
4,6,10
10
10
450 x 45 x 2.25
18 x 1.3/4 x 0.088
4,6
10
10
475 x 45 x 2.25
19 x 1.3/4 x 0.088
6
10
10
500 x 38 x 2.00
20 x 1.1/2 x 0.075
4,6,10
10
10
500 x 45 x 2.25
20 x 1.3/4 x 0.088
4,6
10
10
500 x 50 x 2.50
20 x 2 x 0.100
4,6
10
10
525 x 38 x 2.25
21 x 1.1/2 x 0.075
6
10
10
525 x 45 x 2.25
21 x 1.3/4 x 0.088
4,6
10
10
525 x 50 x 2.50
21 x 2 x 0.100
4,6
10
10
550 x 45 x 2.25
22 x 1.3/4 x 0.088
6
10
10
550 x 50 x 2.50
22 x 2 x 0.100
4,6
10
10
575 x 45 x 2.25
23 x 1.3/4 x 0.088
4
10
10
575 x 50 x 2.50
23 x 2 x 0.100
4
10
10
600 x 45 x 2.25
24 x 1.3/4 x 0.088
6
10
10
600 x 50 x 2.50
24 x 2 x 0.100
4,6
10
10
650 x 50 x 2.50
26 x 2 x 0.100
4,6
10
10
700 x 50 x 2.50
28 x 2 x 0.100
4,6
10
10
